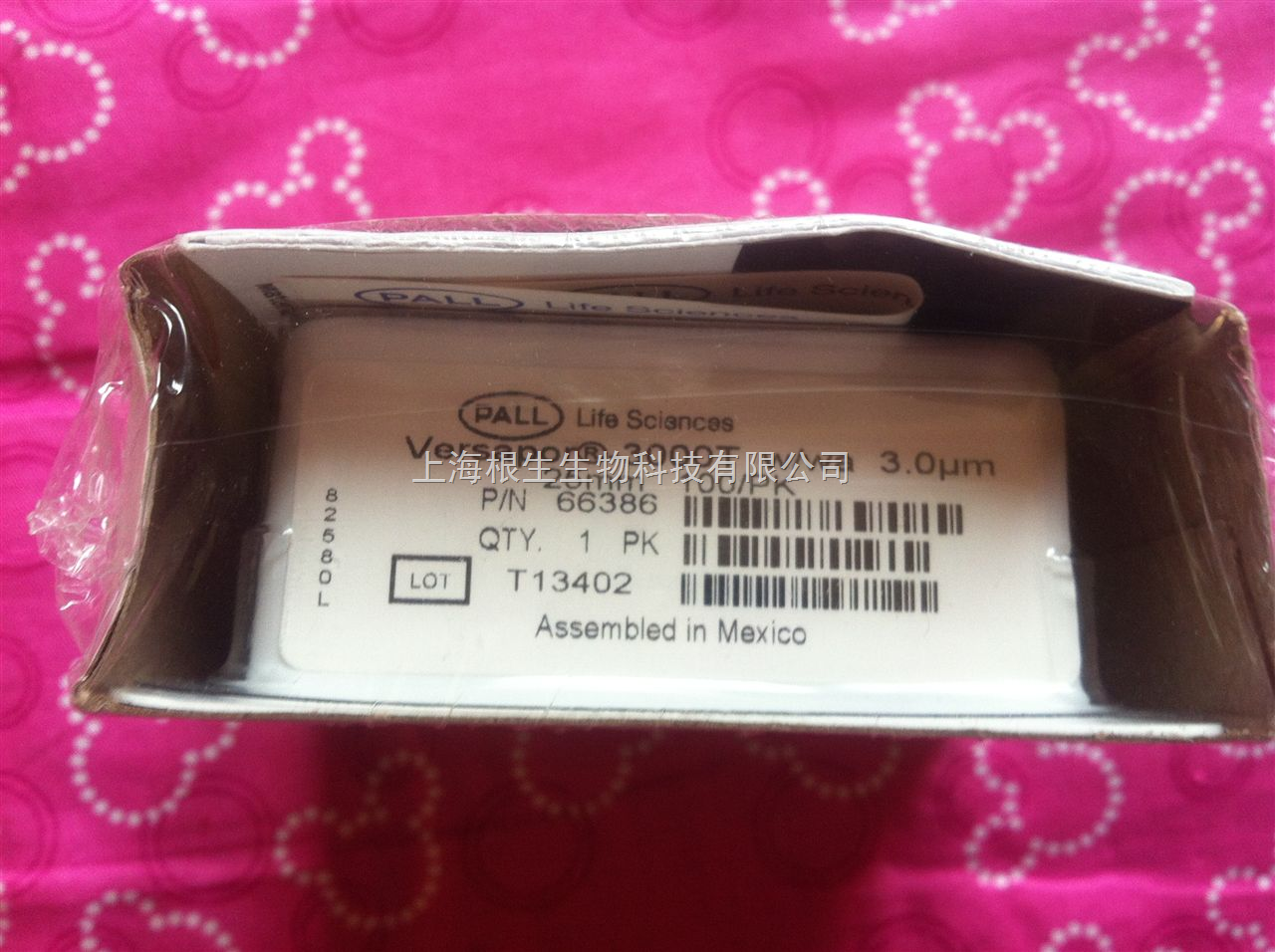

PALL颇尔25mm 3um VERSAPOR3000滤膜66386

产品简介:PALL颇尔25mm 3um VERSAPOR3000滤膜66386,Designed to be used in applications requiring excellent retention properties combined with tensile strengths in excess of 200 bar (20,000 kPa, 3000 psi).

  • 更新时间:2023-04-11
  • 浏览次数:141

详细介绍

PALL颇尔25mm 3um VERSAPOR3000滤膜66386


Ideal for Prefiltration of Difficult-to-Filter
Solutions and Serum

  • Reduces clogging of final filters. Can be used upstream of a sterilizing filter for viscous solutions.

  • Strong and flexible while both wet or dry.

  • Excellent throughput with high liquid flow rates at low differential pressures.

  • PALL颇尔25mm 3um VERSAPOR3000滤膜66386描述:



    Diameter



    Typical Thickness



    Typical Water Flow Rate



    Maximum Operating Temperature - Water



    Minimum Bubble Point - Water



    Biological Safety



    Sterilization

    • Provided non-sterile. If desired, sterilize by gamma irradiation or sanitize with 70% ethanol

    • Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

    • 0.2 &mu;m: 2.0 bar (200 kPa, 30 psi)

    • 0.45 &mu;m: 1.1 bar (110 kPa, 16 psi)

    • 0.8 &mu;m: 0.6 bar (60 kPa, 8 psi)

    • 1.2 &mu;m: 0.4 bar (40 kPa, 6 psi)

    • 3 &mu;m: 0.2 bar (20 kPa, 3 psi)

    • 5 &mu;m: 0.1 bar (10 kPa, 2 psi)

    • 88 &deg;C (190 &deg;F)

    • mL/min/cm2 at 0.7 bar (70 kPa, 10 psi)

    • 0.2 &mu;m: 16

    • 0.45 &mu;m: 75

    • 0.8 &mu;m: 142

    • 1.2 &mu;m: 315

    • 3 &mu;m: 518

    • 5 &mu;m: 778

    • 94 &mu;m (3.7 mils)

    • 25 - 293 mm

    • 非纺织载体上的丙烯酸共聚物

    • 孔径:0.2, 0.45, 0.8, 1.2, 3, and 5um

  • 订货信息

Part NumberDescriptionPkg

Versapor 200 Membrane Disc Filters, 0.2 um
6641425 mm100/pkg

6641547 mm100/pkg

Versapor 450 Membrane Disc Filters, 0.45 um
6640725 mm100/pkg

6640847 mm100/pkg

66410142 mm25/pkg

66411293 mm25/pkg

Versapor 800 Membrane Disc Filters, 0.8 um
6640025 mm100/pkg

6633137 mm100/pkg

6640147 mm100/pkg

60098102 mm25/pkg

66403142 mm25/pkg

66404293 mm25/pkg

Versapor 1200 Membrane Disc Filters, 1.2 um
6639325 mm100/pkg

6639447 mm100/pkg

66396142 mm25/pkg

66397293 mm25/pkg

Versapor 3000 Membrane Disc Filters, 3 um
6638625 mm100/pkg

6638747 mm100/pkg

66389142 mm25/pkg

Versapor 5000 Membrane Disc Filters, 5 um
6633237 mm100/pkg

6017847 mm100/pkg
