PALL颇尔0.2um囊式过滤器KA2EKVP1G KA3EKVP6G

产品简介:PALL颇尔0.2um囊式过滤器KA2EKVP1G KA3EKVP6G,PES过滤膜,0.2um孔径,直径(包括阀门)94mm,长度157mm,750cm² (0.8 ft²)有效过滤面积。

  • 更新时间:2023-04-11
  • 浏览次数:273

详细介绍

PALL颇尔0.2um囊式过滤器KA2EKVP1G KA3EKVP6G

PES过滤膜,0.2um孔径,直径(包括阀门)94mm,长度157mm, 750cm² (0.8 ft²)有效过滤面积。

Materials of Construction


 Filter MembraneHydrophilic PES
 Support/DrainagePolypropylene
 End Cap, Core and CagePolypropylene
 Capsule ShellPolypropylene
 Sealing TechnologyThermal bonding without adhesives


Operating Parameters(1)


 Maximum Temperature40 °C
 Maximum Operating Pressure

5.2 bar (75 psi) at 20 °C
4.0 bar (58 psi) at 40 °C

  Maximum Differential Pressure 4.0 bar (58 psi) at 40 °C


(1) In compatible fluids which do not soften, swell or adversely affect the filter or its materials of construction

Sterilization(2)


 Autoclave 5 x 60 minutes at 125 °C, slow exhaust
 Gamma Irradiation Maximum of 50 kGy


(2) Pre-sterilized Kleenpak capsules must not be re-sterilized
Kleenpak capsules must not be sterilized in-situ by passing steam under pressure
Water wet Supor EKV capsules prior to steaming to retain full water wettability for integrity testing

Typical Extractables in Water at 20 °C


 KA1 / KA2 < 5 mg per capsule
 KA3 < 10 mg per capsule


Nominal Dimensions


 KA1KA2KA3
 Diameter incl. Valves 94 mm (3.7 in.)  94 mm (3.7 in.) 105 mm (4.1 in.)
 Length - Code 1 117 mm (4.6 in.) 157 mm (6.2 in.) 174 mm (6.8 in.)
 Length - Code 6 157 mm (6.2 in.) 197 mm (7.7 in.) 210 mm (8.3 in.)
  Length - Code 16 137 mm (5.4 in.) 177 mm (7.0 in.) 192 mm (7.6 in.)


Nominal Effective Filter Area (EFA)


 KA1375 cm&sup2; (0.4 ft&sup2;)
 KA2750 cm&sup2; (0.8 ft&sup2;)
 KA31500 cm&sup2; (1.6 ft&sup2;)


Flow Characteristics

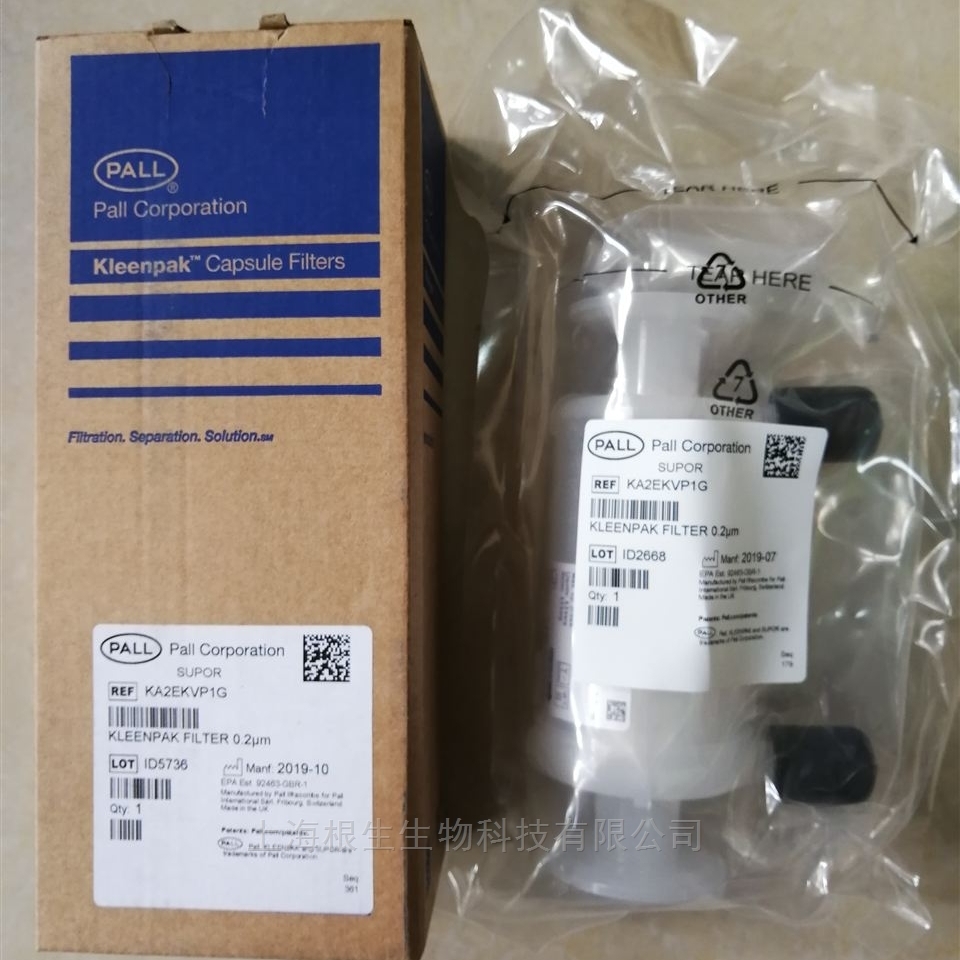

PALL颇尔0.2um囊式过滤器KA2EKVP1G
