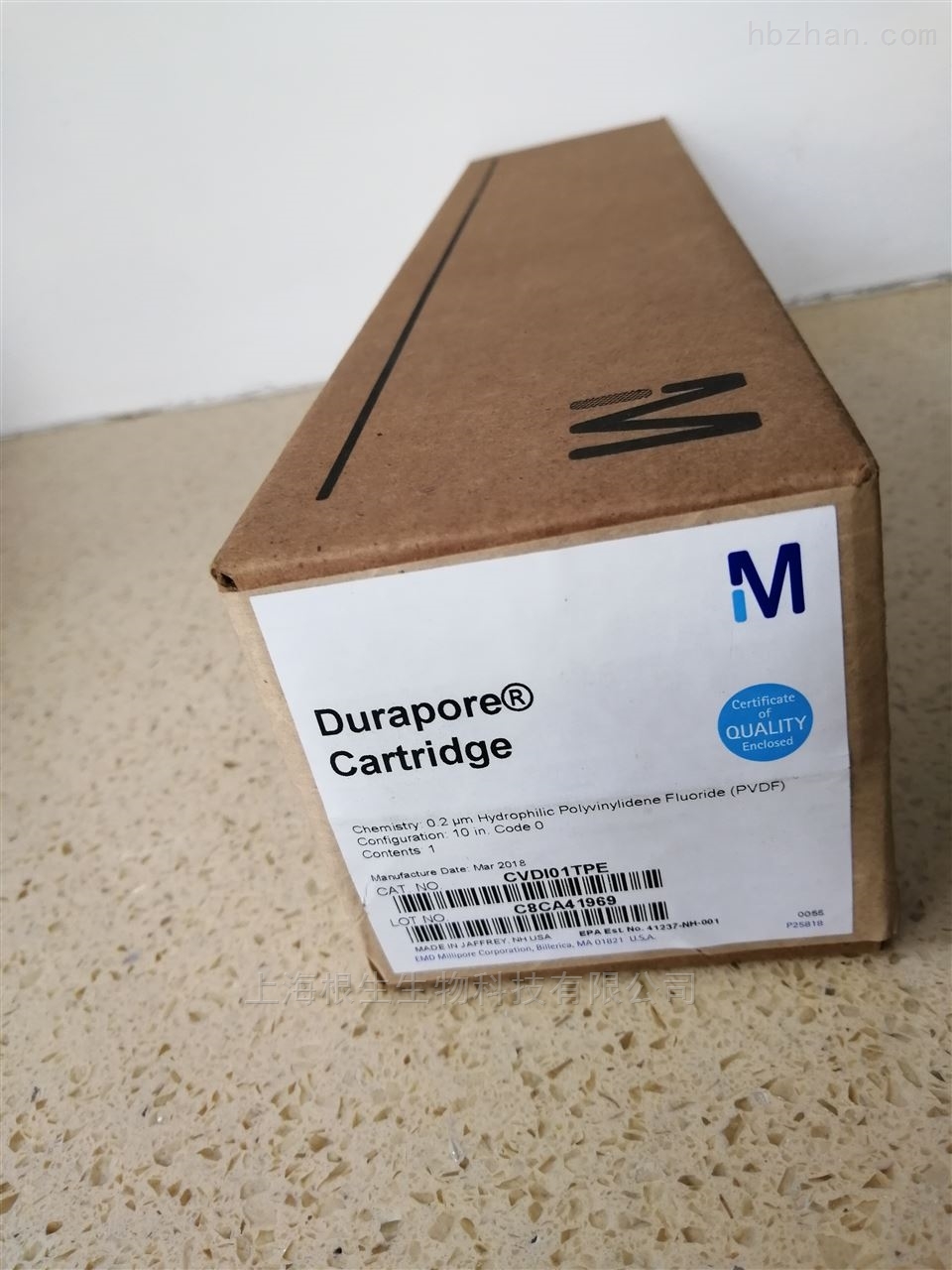

Merck默克Millipore密理博Durapore Cartridge 0.2um滤芯CVDI01TPE
Chemistry:0.2um Hydrophilic Polyvinylidene Fluoride (PVDF)。
描述 | |
---|---|
产品编号 | CVDI01TPE |
滤膜代码 |
|
产品描述 | Durapore® CVDI Cartridge Filter 10 in. 0.22 µm Code 0 fluoroelastomer |
Merck默克Millipore密理博Durapore Cartridge 0.2um滤芯CVDI01TPE
Device Configuration | Cartridge |
Maximum Differential Pressure, bar (psid) | Forward: 5.5 bar (80 psid) @ 25 °C; 1.7 bar (25 psid) @ 80 °C; 0.35 bar (5 psid) @ 135 °C. Reverse: 3.5 bar (50 psid) @ 25 °C, intermittent |
Cartridge Code | Code 0 (2-222) O-rings |
Good Manufacturing Practices | These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices. |
Biological Information | |
---|---|
过滤介质 | PVDF |
Bacterial Retention | Samples of the Durapore® membrane used in this cartridge were quantitatively retentive of a minimum Brevundimonas diminuta challenge concentration of 1 x 10⁷ CFU/cm² using ASTM® F838 methodology. |
可湿润性 | 亲水性 |
Physicochemical Information | |
---|---|
孔径 | 0.2 µm |
Air Diffusion at 23 °C | ≤13.3 mL/min @ 2.75 bar (40 psig) in water |
Bubble Point at 23 °C | ≥3100 mbar (45 psig) air with water |
Gravimetric Extractables | The extractables level was equal to or less than 25 mg per 10-inch cartridge after 24 hours in water at controlled room temperature. |
Indirect Food Additive | All component materials meet the FDA Indirect Food Additive requirements cited in 21 CFR 177-182. All component materials meet the requirements of the EU framework regulation [1935/2004/EC] regarding materials and articles intended to contact food. |
Non-Fiber Releasing | This product was manufactured with a Durapore® membrane which meets the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6). |
尺寸 | |
---|---|
滤芯长度 | 10 in. (25 cm) |
直径 | 6.9 cm (2.7 in.) |
有效过滤面积 | 0.69 m² |
滤芯尺寸 | 10 in. |
材料信息 | |
---|---|
过滤介质 |
|
装置材质 |
|
密封材料 | 氟碳橡胶 |
支撑材料 | Polypropylene |
Packaging Information | |
---|---|
Material Size | 1 |
