首页-产品中心-ADVANTEC产品 > ADVANTEC东洋600ml、2000ml超滤杯Stirred Cells UHP-150K UHP-90K

ADVANTEC东洋600ml、2000ml超滤杯Stirred Cells UHP-150K UHP-90K

产品简介:ADVANTEC东洋600ml、2000ml超滤杯Stirred Cells UHP-150K UHP-90K

  • 更新时间:2023-04-11
  • 浏览次数:226

详细介绍

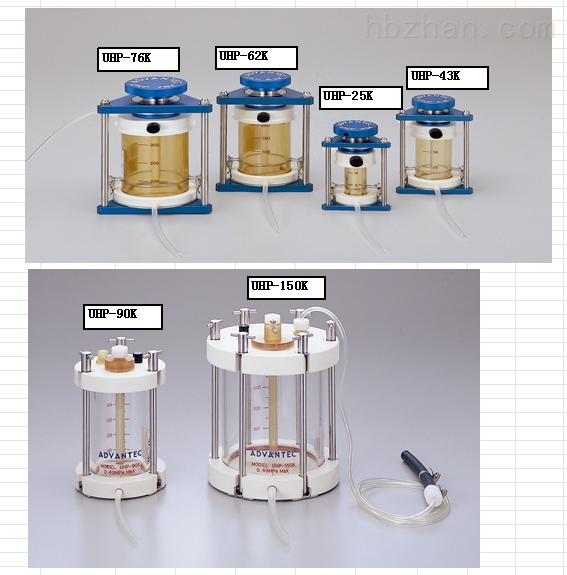

ADVANTEC东洋600ml、2000ml超滤杯Stirred Cells UHP-25K UHP-43K UHP-150K UHP-90K UHP-62K

1、PTFE stir bar is mounted to stay clear of the membrane filter.

2、Removable cap (or sample port for UHP 76 90 and 150) allows addition or removal of sample during filtration.

3、Clear reservoir allows continuous observation of sample level and condition.

4、All contact surfaces are non-metallic.



Product Specifications: Stirred Cells
Maximum operating temperature for these units is 40°C; maximum operating pressure is 73 psi (63±6 psi with supplied vent relief valve). Units have Polyacetal Caps and Bases Polycarbonate Cell Barrels (UHP 90 and 150 have Acrylic Cell Barrels) Silicon O-rings Polypropylene Support Screens and PTFE Stir Bars.
 UHP-25KUHP-43KUHP-62KUHP-90KUHP-150KCatalog No.3135100031351100313512003135140031351500Cell materialPolysulphoneAcrylicFilter size (mm in dia.)25436290150Cell capacity (ml)10702006002000Min.Recoverable upstream (ml)0.52.54.51560Downstream holdup (ml)0.10.20.30.61.6Effective filtration area(cm2)3.510.924.450.7159.6Max. operating pressure (MPa)0.49Relief valve set pressure (MPa)0.39 +/- 0.09DimensionsHight140164198222263(㎜)Width97108132144215Weight (kg)0.81.0 1.81.83.9
Ordering Information: Stirred Cells
Stirred Cells include main vessel top and base stir bar support screen o-rings and vent relief valve. For price and availablity on pressure vessels or replacement parts
